# Load libraries
library(data.table)
library(devtools)
library(presto)
library(glmGamPoi)
library(sctransform)
library(Seurat)
library(tidyverse)
library(miQC)
library(SeuratWrappers)
library(flexmix)
library(SingleCellExperiment)
library(SummarizedExperiment)
library(readxl)
library(fishpond)
library(Matrix)
library(speckle)
library(scater)
library(patchwork)
library(vctrs)
library(alevinQC)
library(harmony)
library(scDblFinder)
library(cellXY)
# Set global options for Seurat v5 objects
options(Seurat.object.assay.version = 'v5')4 Skin: Post-clustering QC and characterization
4.1 Set up Seurat workspace
4.2 Load previously saved object
merged.18279.skin.singlets <- readRDS("Skin_scRNA_Part3.rds")4.3 Set idents to preferred initial clustering resolution
Idents(merged.18279.skin.singlets) <- merged.18279.skin.singlets$RNA_snn_res.0.8
merged.18279.skin.singlets$seurat_clusters <- merged.18279.skin.singlets$RNA_snn_res.0.8

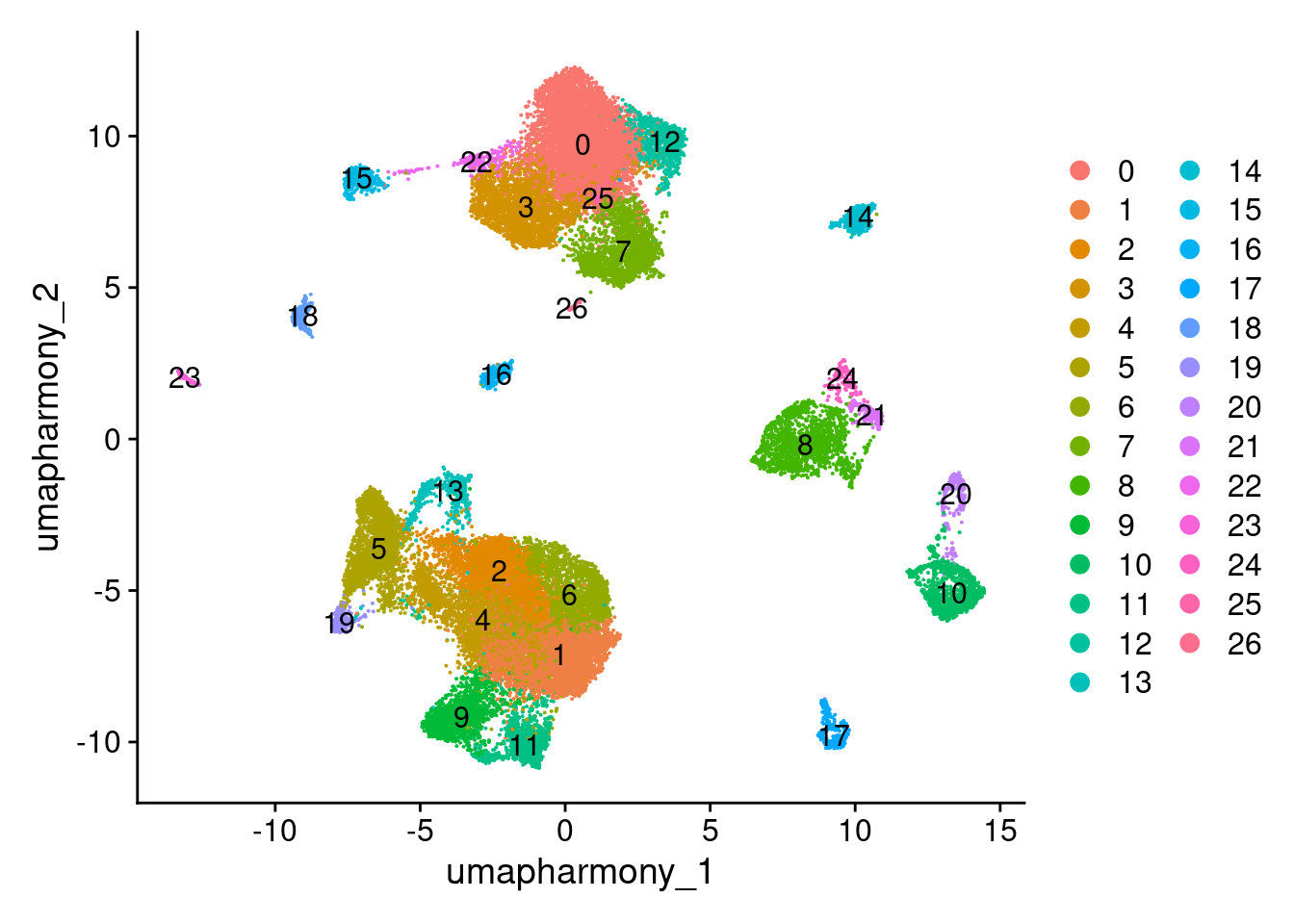

DimPlot(merged.18279.skin.singlets, reduction="umap.harmony", label = TRUE)
4.4 Plot QC

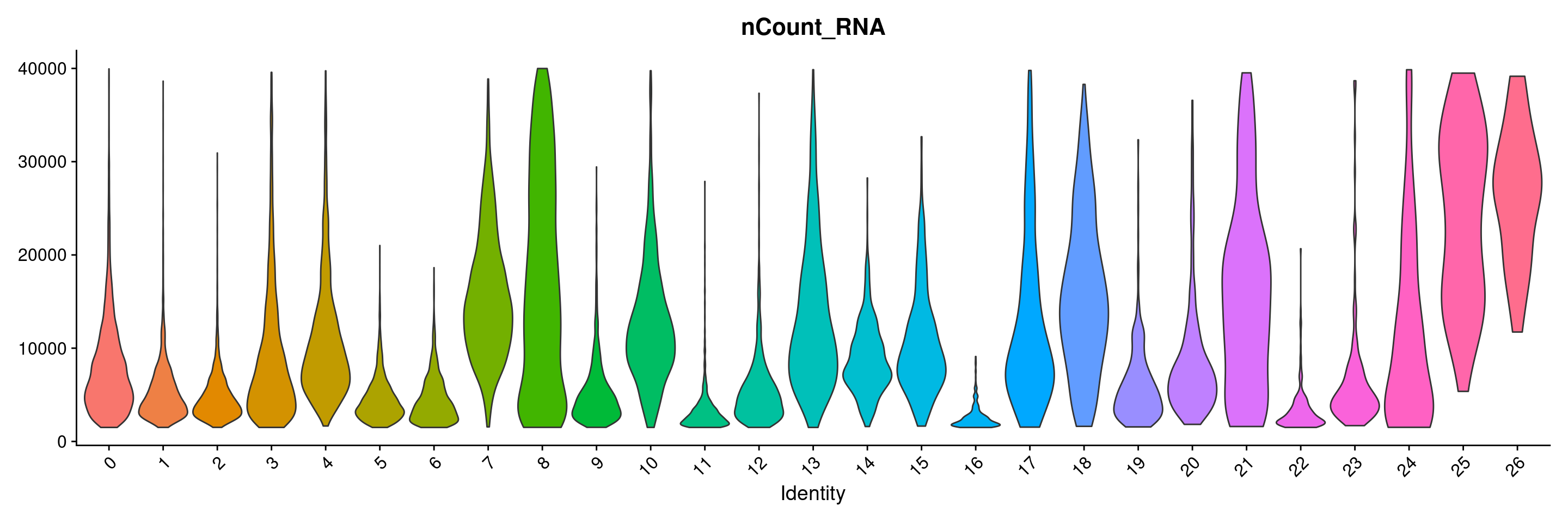

VlnPlot(merged.18279.skin.singlets, features = "nCount_RNA", group.by="seurat_clusters",pt.size=0) + NoLegend()

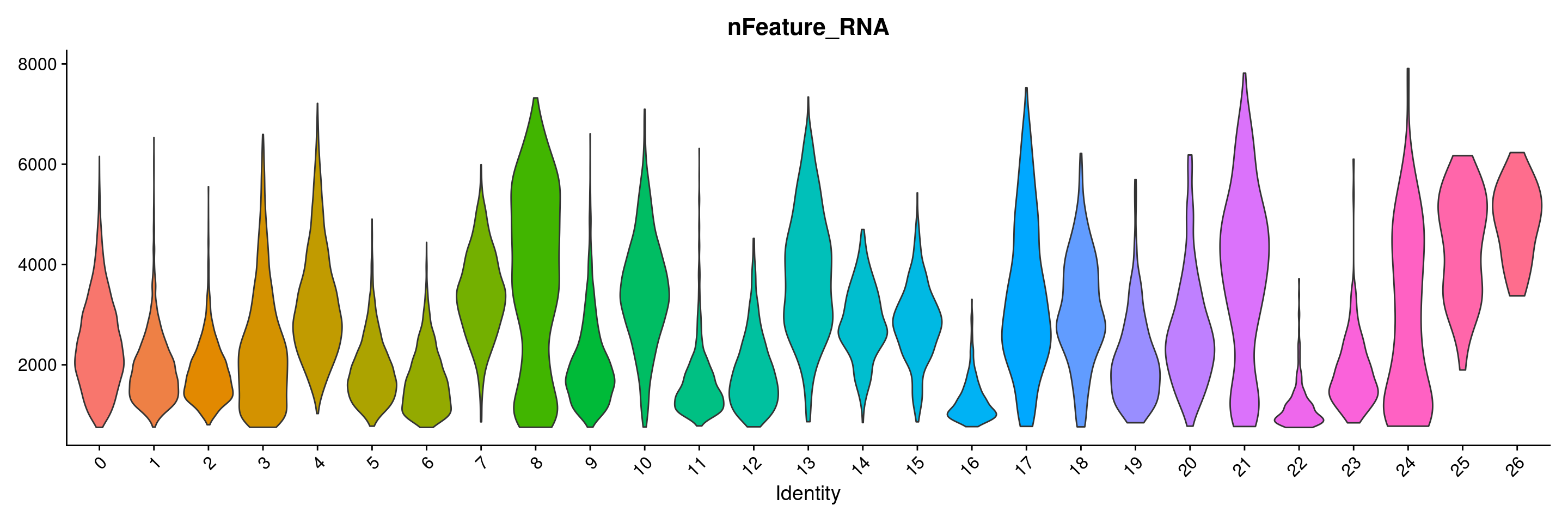

VlnPlot(merged.18279.skin.singlets, features = "nFeature_RNA", group.by="seurat_clusters",pt.size=0) + NoLegend()

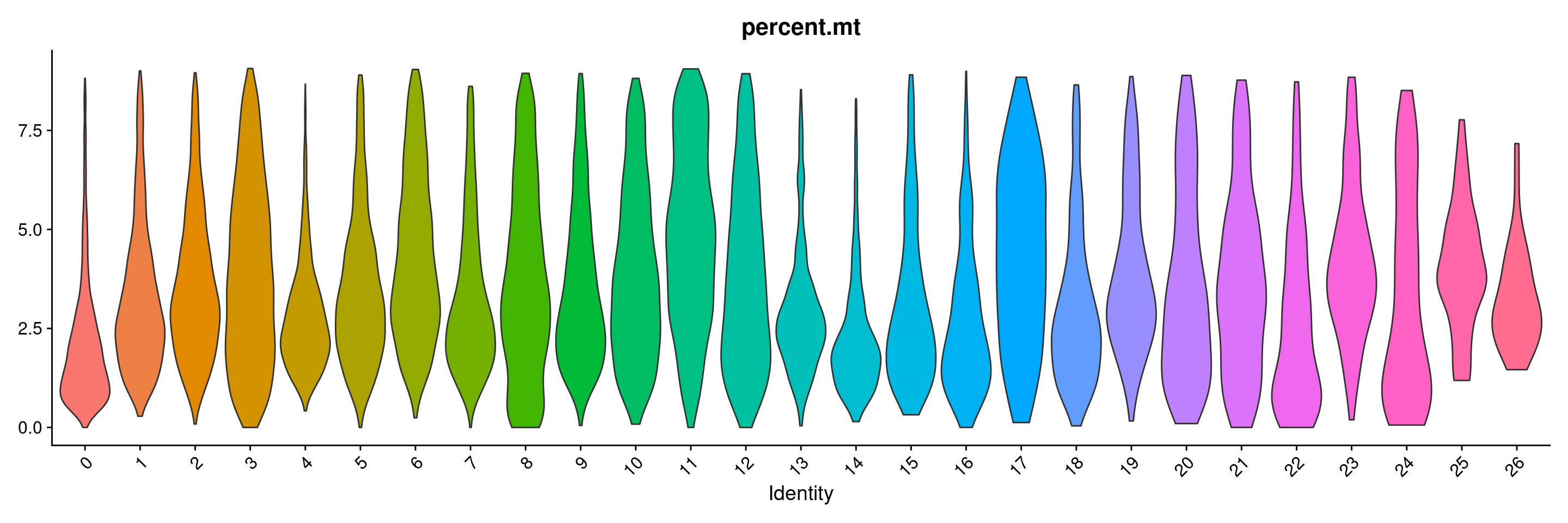

VlnPlot(merged.18279.skin.singlets, features = "percent.mt", group.by="seurat_clusters",pt.size=0) + NoLegend()
4.5 Identify cursory marker genes of each cluster
Note layers were already joined in previous session
DefaultAssay(merged.18279.skin.singlets) <- "RNA"
vargenes <- presto::wilcoxauc(merged.18279.skin.singlets, 'seurat_clusters', seurat_assay = 'RNA')
top_vargenes <- top_markers(vargenes, n = 100, auc_min = 0.5, pct_in_min = 50, pct_out_max = 50)
top_vargenes# A tibble: 100 × 28
rank `0` `1` `10` `11` `12` `13` `14` `15` `16` `17` `18` `19`
<int> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr>
1 1 TYRO… IL7R COL6… CNOT… DOCK4 STMN1 ENSG… LAMP3 HPGD TM4S… CPVL XCL1
2 2 BCL2… SPOC… DCN SYNE2 RBM47 HMGB2 IL3RA FSCN1 TPSA… SPAR… WDFY4 TNFR…
3 3 IL1RN CD3E COL6… PARP8 FNDC… TYMS IRF4 DAPP1 TPSB2 PECA… ENSG… XCL2
4 4 FCER… LTB COL1… BCL1… MYO9B RRM2 P2RY6 MARC… CPA3 GNG11 HLA-… CTSW
5 5 IFI30 IL32 NNMT SLC3… KYNU MKI67 ENSG… NUB1 HPGDS CAV1 HLA-… SYTL3
6 6 MARC… ICOS CALD1 PRKCH CYRIA DUT PLD4 CERS6 GATA2 RAMP2 C1or… CD69
7 7 PLAUR CD52 C1R PPP1… ABCA1 PCLAF SLC1… CD83 KIT A2M DNAS… RIN3
8 8 S100… CD3D SELE… RORA DMXL2 H4C3 JCHA… CCR7 CTSG PDLI… HDAC9 CD96
9 9 ENSG… CD2 CXCL… CAMK4 ATP1… MCM7 POLB BASP1 HDC ADGR… RUBC… CSF2
10 10 PLEK CD6 COL1… KLF12 FNIP2 KIF22 FCHS… CSF2… IL18… EMCN CLEC… KLRB1
# ℹ 90 more rows
# ℹ 15 more variables: `2` <chr>, `20` <chr>, `21` <chr>, `22` <chr>,
# `23` <chr>, `24` <chr>, `25` <chr>, `26` <chr>, `3` <chr>, `4` <chr>,

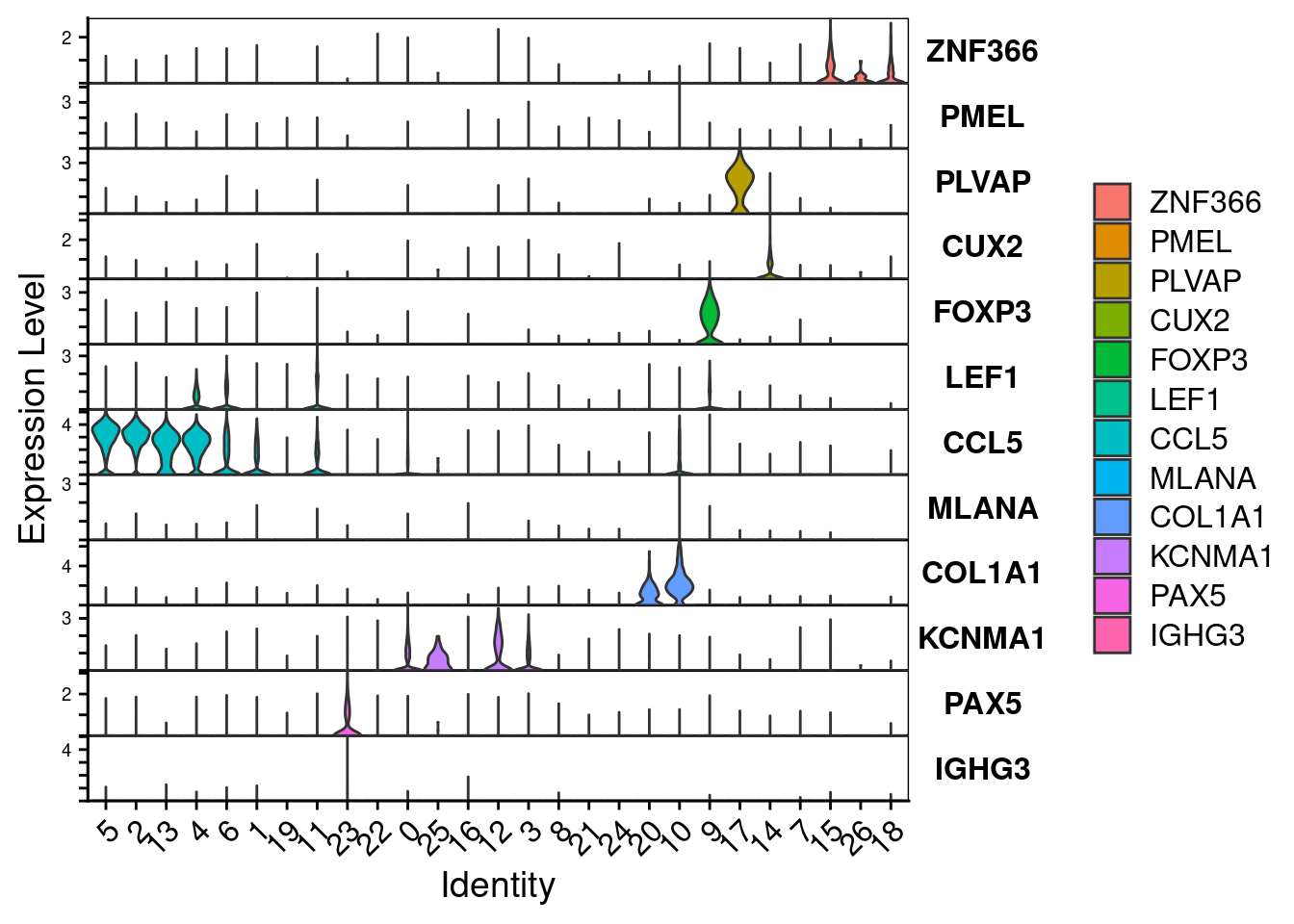

# `5` <chr>, `6` <chr>, `7` <chr>, `8` <chr>, `9` <chr>4.6 Plot genes from slide-tags preprint
Sourced from this preprint
goi <- c("PMEL","MLANA","CCL5","LEF1","FOXP3","PAX5","IGHG3","KCNMA1","ZNF366","CUX2","COL1A1","PLVAP")
VlnPlot(merged.18279.skin.singlets,features=goi,assay="RNA",layer="data",flip=T,sort=T,stack=T)

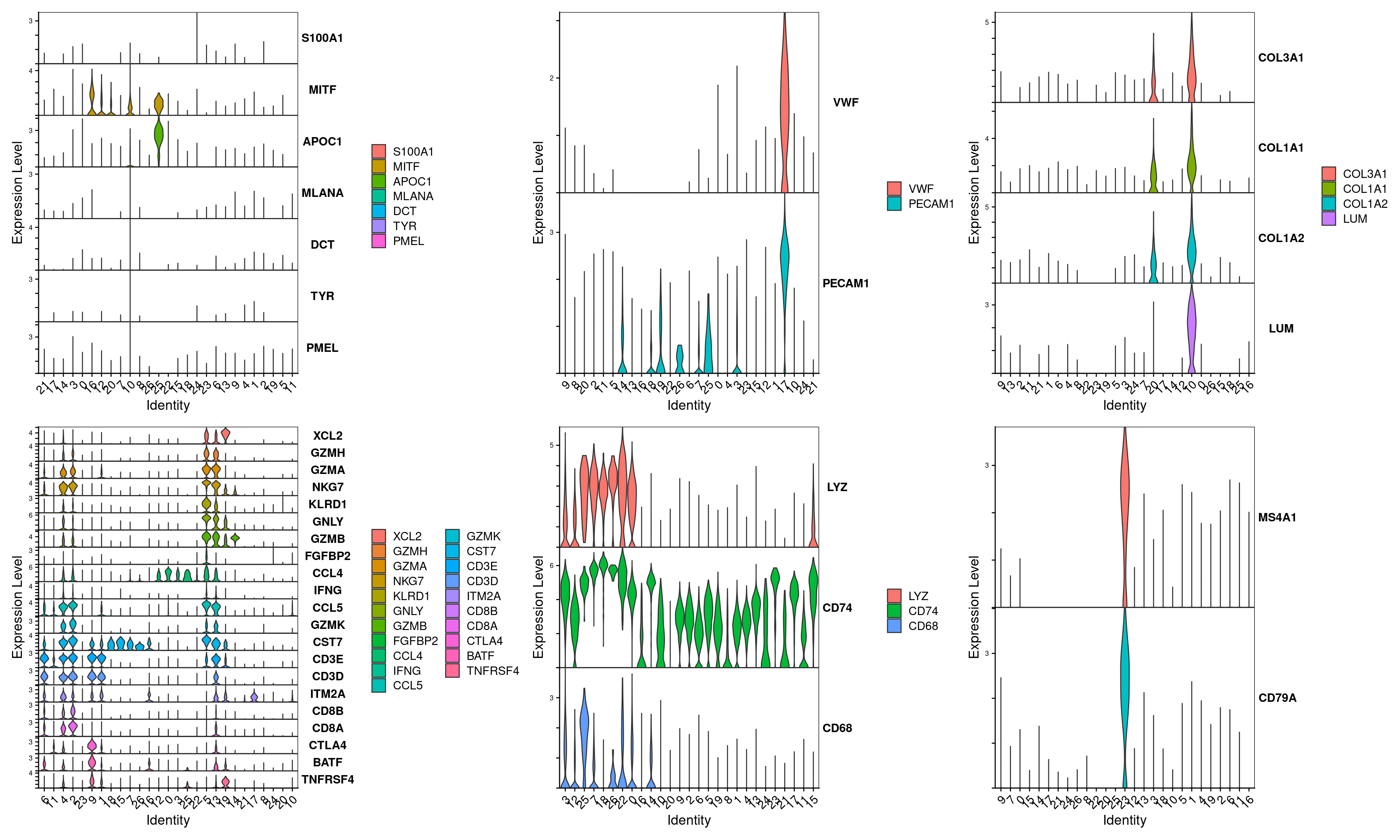

4.7 Plot other known markers
Sourced from this paper
tumor <- c("DCT","MLANA","MITF","PMEL","S100A1","TYR","APOC1")
endothelial <- c("PECAM1","VWF")
fibroblast <- c("COL3A1","COL1A1","COL1A2","LUM")
tcell <- c("FGFBP2","KLRD1","CD3E","CD3D","GZMB","XCL2","GZMH","CST7","GZMK","GZMA","IFNG","GNLY","CCL4","NKG7","CCL5","CD8A","CD8B","CTLA4","TNFRSF4","BATF","ITM2A")
mono <- c("LYZ","CD74","CD68")
bcell <- c("MS4A1","CD79A")
VlnPlot(merged.18279.skin.singlets,features=tumor,assay="RNA",layer="data",flip=T,sort=T,stack=T) +
VlnPlot(merged.18279.skin.singlets,features=endothelial,assay="RNA",layer="data",flip=T,sort=T,stack=T) +
VlnPlot(merged.18279.skin.singlets,features=fibroblast,assay="RNA",layer="data",flip=T,sort=T,stack=T) +
VlnPlot(merged.18279.skin.singlets,features=tcell,assay="RNA",layer="data",flip=T,sort=T,stack=T) +
VlnPlot(merged.18279.skin.singlets,features=mono,assay="RNA",layer="data",flip=T,sort=T,stack=T) +
VlnPlot(merged.18279.skin.singlets,features=bcell,assay="RNA",layer="data",flip=T,sort=T,stack=T) +
NoLegend()

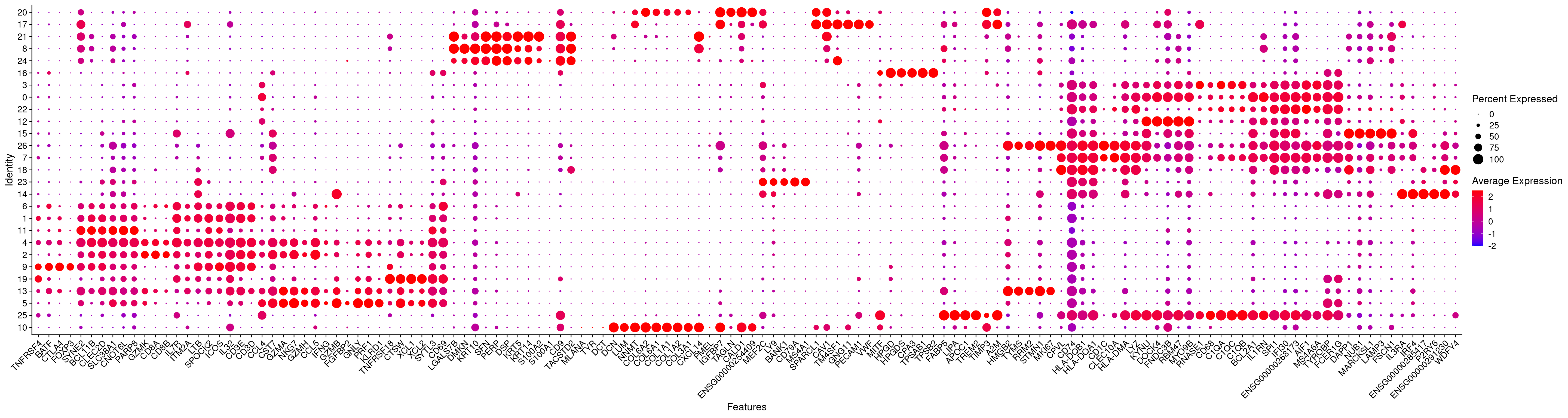

4.8 Plot top markers identified and canonical genes as a dotplot
top_vargenes <- top_markers(vargenes, n = 5, auc_min = 0.5, pct_in_min = 50, pct_out_max = 50)
top_markers <- top_vargenes %>%
select(-rank) %>%
unclass() %>%
stack() %>%
pull(values) %>%
unique() %>%
.[!is.na(.)]
dotplotmarkers <- unique(c(top_markers,tumor,endothelial,fibroblast,tcell,mono,bcell))
# Compute aggregated expression values of these genes and cluster them to order the figure
rna <- AverageExpression(merged.18279.skin.singlets,assay="RNA",slot="data")As of Seurat v5, we recommend using AggregateExpression to perform pseudo-bulk analysis.
First group.by variable `ident` starts with a number, appending `g` to ensure valid variable names
This message is displayed once per session.rna.sub <- rna$RNA[dotplotmarkers,]
cors.genes <- as.dist(1-cor(as.matrix(t(rna.sub)),method="pearson"))
hc.genes <- hclust(cors.genes)
dotplotmarkers.sorted <- rownames(rna.sub)[hc.genes$order]
# Plot
DotPlot(merged.18279.skin.singlets,features=dotplotmarkers.sorted,assay="RNA",cols=c("blue","red"),cluster.idents=T) + RotatedAxis()

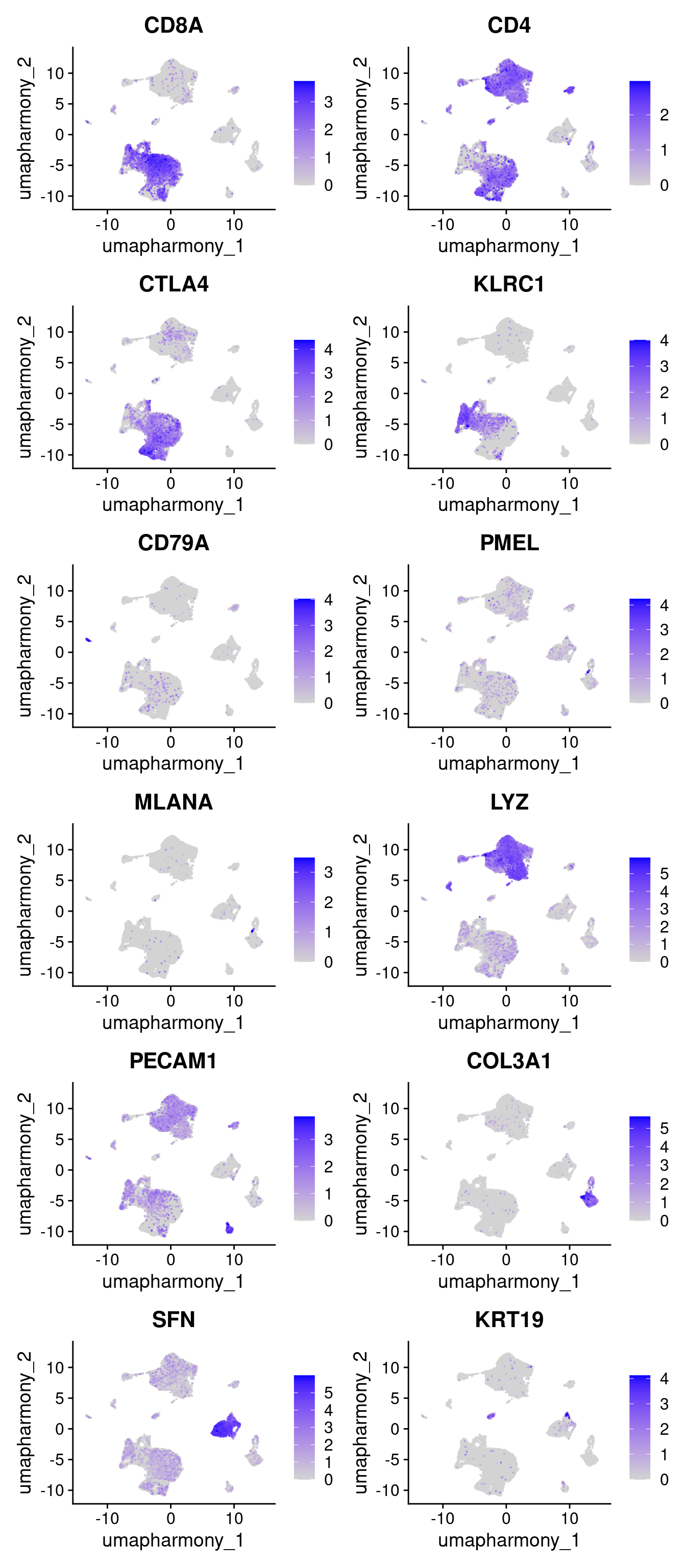

4.9 Plot expression of key genes in UMAP space
FeaturePlot(merged.18279.skin.singlets,
reduction="umap.harmony",
features=c("CD8A","CD4","CTLA4","KLRC1","CD79A","PMEL","MLANA","LYZ","PECAM1","COL3A1","SFN","KRT19"),
order = T,
ncol = 2)
4.10 Get session info
sessionInfo()R version 4.3.1 (2023-06-16)
